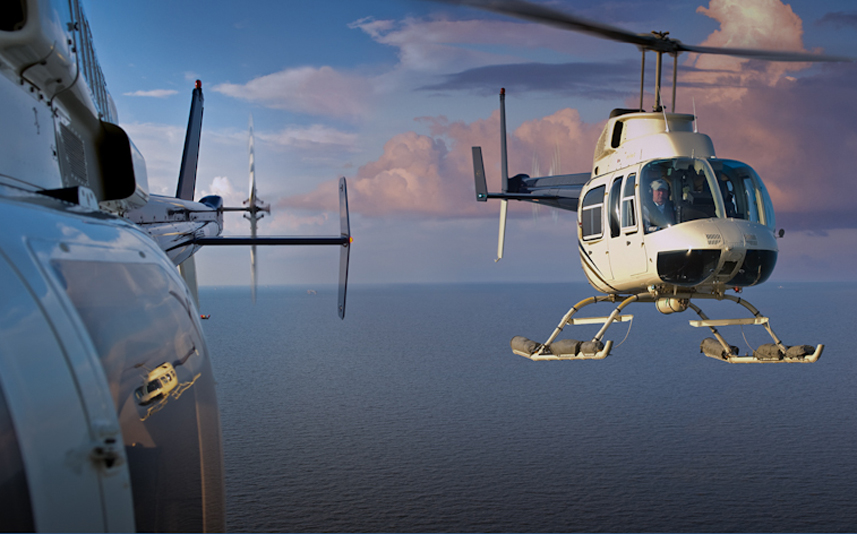

THE BELL 206L4

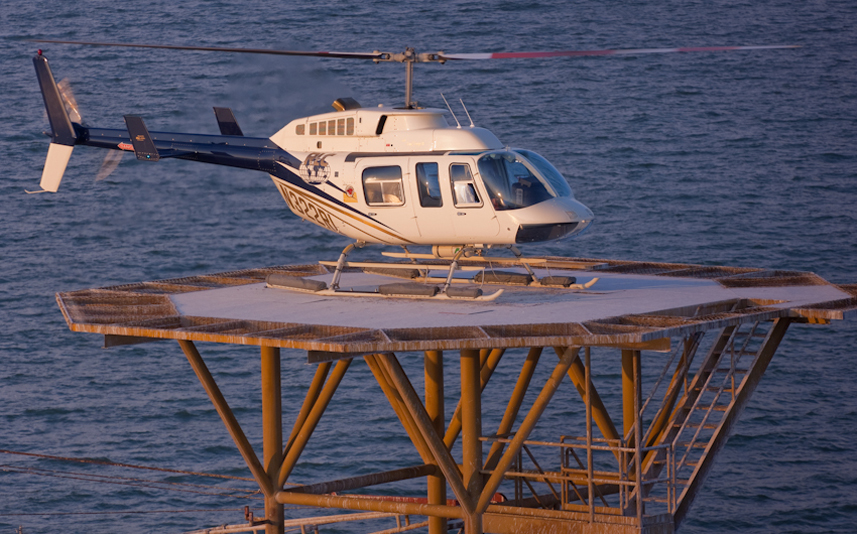

Whether for corporate transportation, EMS, offshore oil and gas rig support, law enforcement or firefighting, the Bell 206L4 has what it takes to accomplish the mission.



The Bell 206L4 features a high-inertia two-bladed rotor system, while the patented suspension system delivers an incredibly smooth ride. The Bell 206L4 can hold up to seven passengers, very comfortably, and the club-passenger seating allows for face-to-face conversations. In addition to offering outstanding product features, the Bell 206L4 is backed by Bell Helicopter's renowned in-service support, voted #1 by our customers for twenty years running.  Power. Reliability. Value. For Bell, the 206L4 is mission accomplished.

  • SPECIFICATIONS

    SPEEDS at max gross wt

    Vne

    Max cruise

    Range at VLRC¹

    Max Endurance¹

    CAPACITIES

    Standard Seating

    Maximum Seating

    Standard Fuel

    Cabin Volume²

    Aft (Baggage) Compartment Volume

    WEIGHTS

    Empty Weight (Base Aircraft)

    Max Gross Weight (Internal)

    Max Gross Weight (External Load)

    Useful Load (Internal, Base Aircraft)

    Cargo Hook Capacity

    POWERPLANT Rolls-Royce 250-C30P

    Engine Rating, Take-off



    ¹Max GW, ISA, Std fuel - no reserve @ sea level

    ²Does not include copilot volume of 20ft³ / 0.6m³





    241 km/h 130 nœuds

    203 km/h 109 nœuds

    602 km 325 milles marins

    3,7 h



    1 + 6

    1 + 6

    419 litres 110,7 gallons US

    2,3 m³ 80 pieds³

    0,45 m³ 16 pieds³



    1 057 kg 2 331 livres

    2 018 kg 4 450 livres

    2 064 kg 4 550 livres

    961 kg 2 119 livres

    907 kg 2 000 livres



    541 kW 726shp

  • IMAGE GALLERY

  • BROCHURE

    Bell 206L4 Data Brochure
