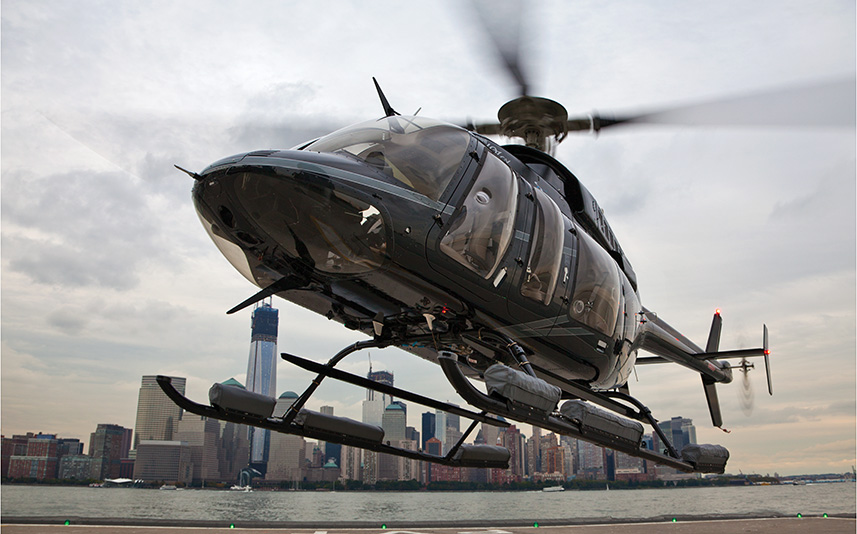

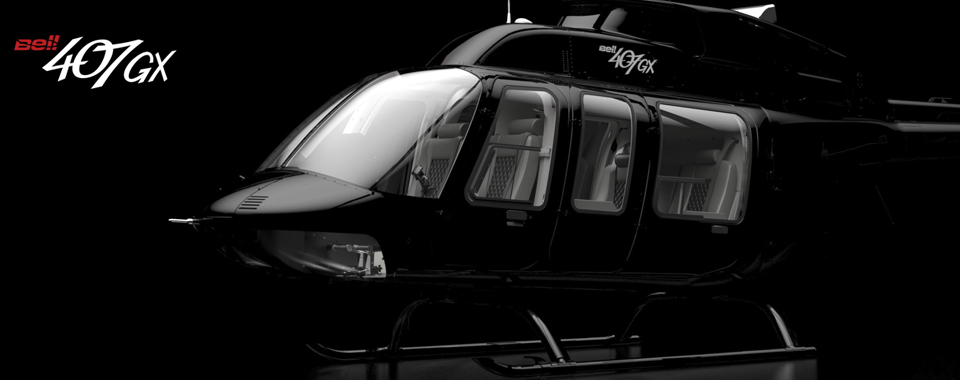

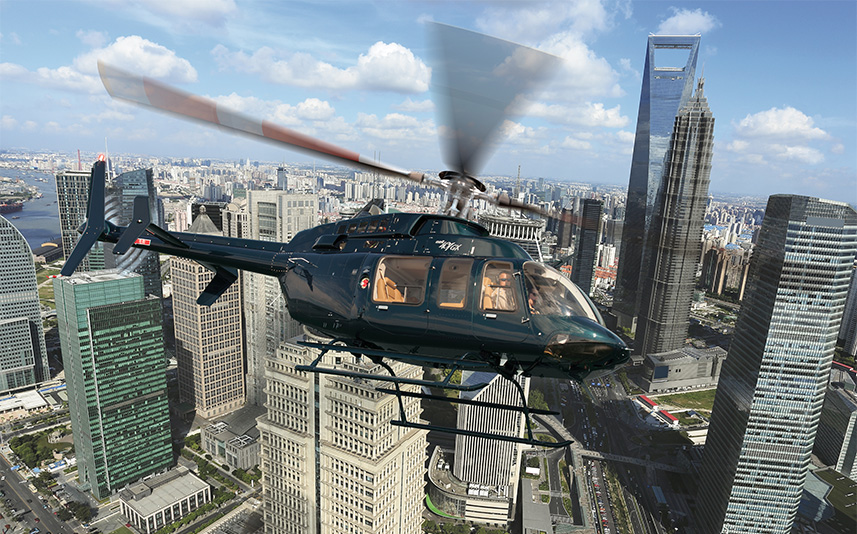

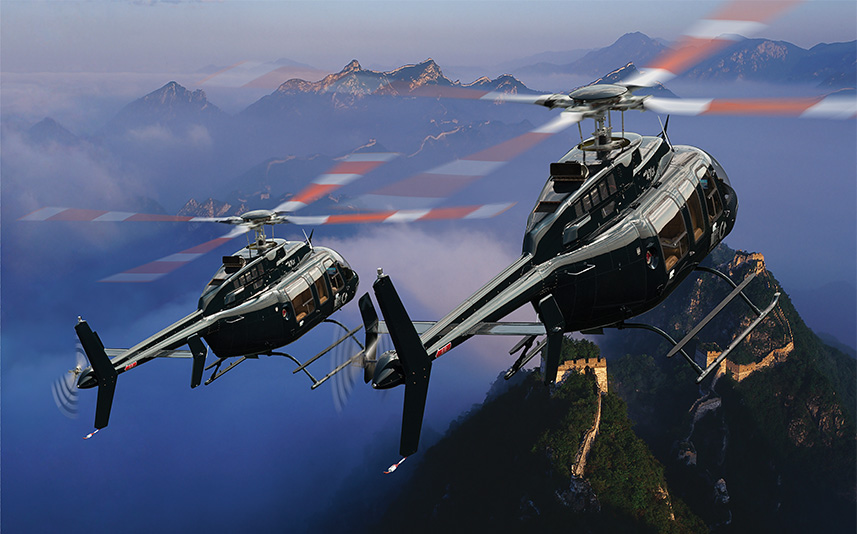

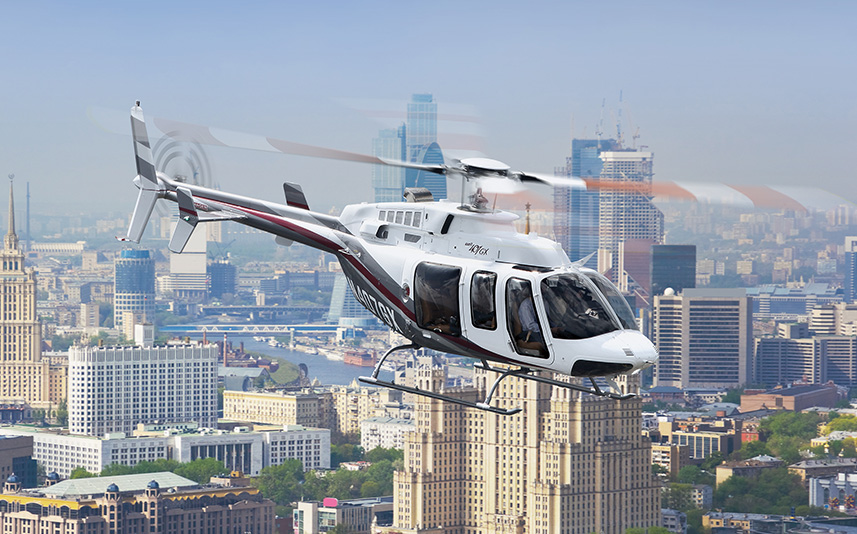

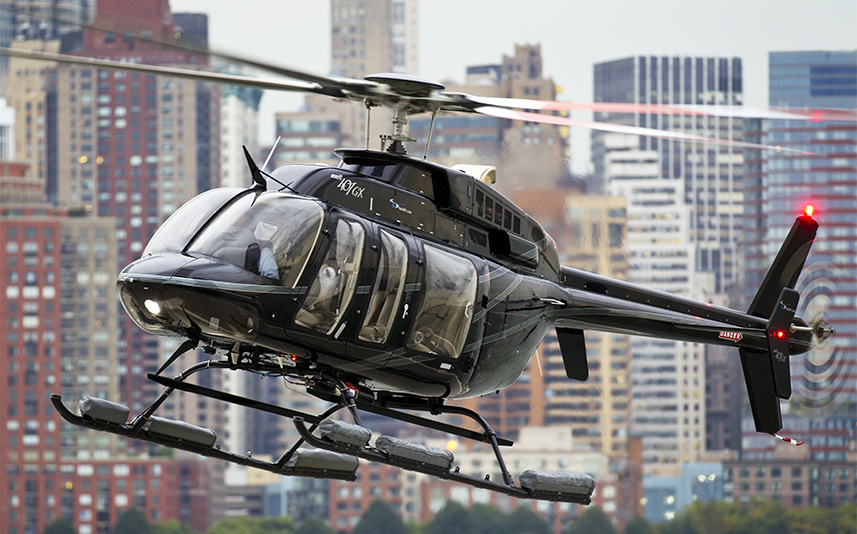

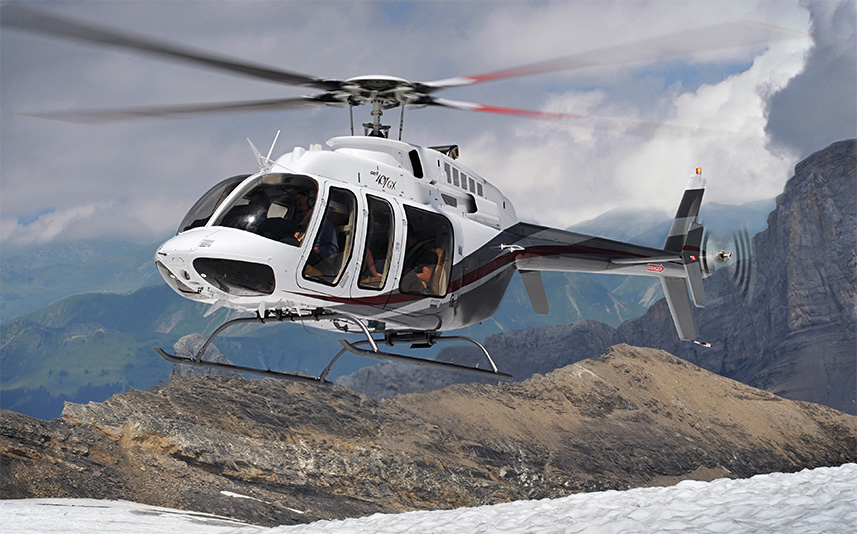

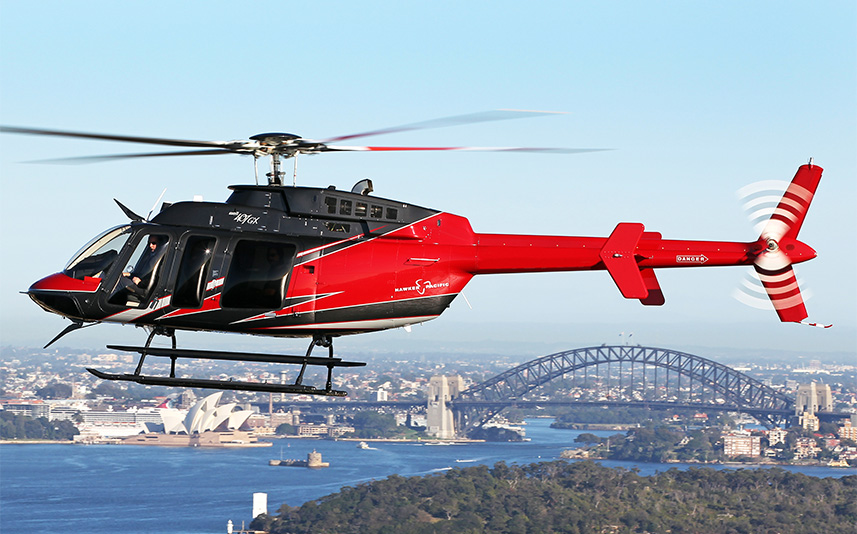

THE BELL 407GX

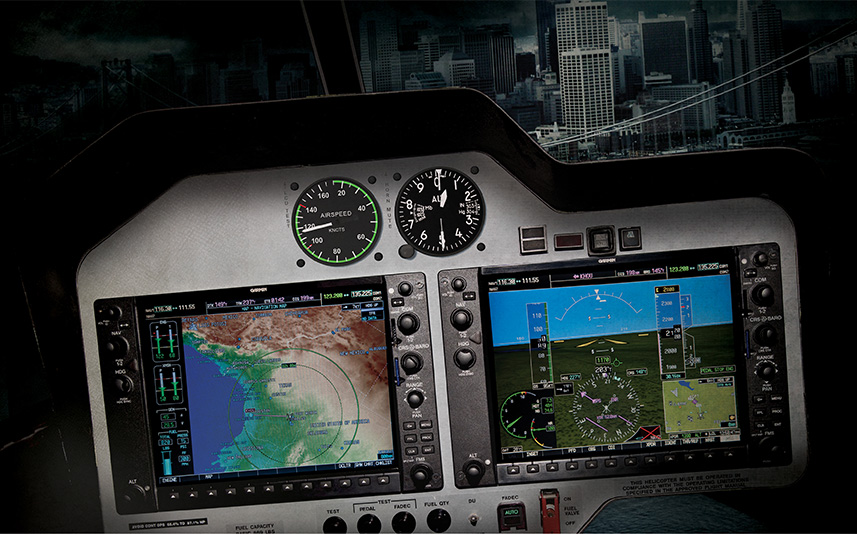

In the new 407GX, the superior performance of the 407 reaches a higher level. Its Garmin G1000H flight deck provides critical flight information at a glance for greater situational awareness and safety. It's just one more way the 407GX offers enhanced performance for every mission.



  • SPECIFICATIONS

    SPEEDS at max gross wt

    Vne

    Max cruise

    Range at VLRC¹

    Max Endurance¹

    CEILING ALTITUDES

    Service Ceiling (Pressure Altitude)

    Hover Ceiling IGE (Optional Max GW, ISA)

    Hover Ceiling OGE (Optional Max GW, ISA)

    CAPACITIES

    Standard Seating

    Maximum Seating

    Standard Fuel

    Auxilary Fuel (Optional)

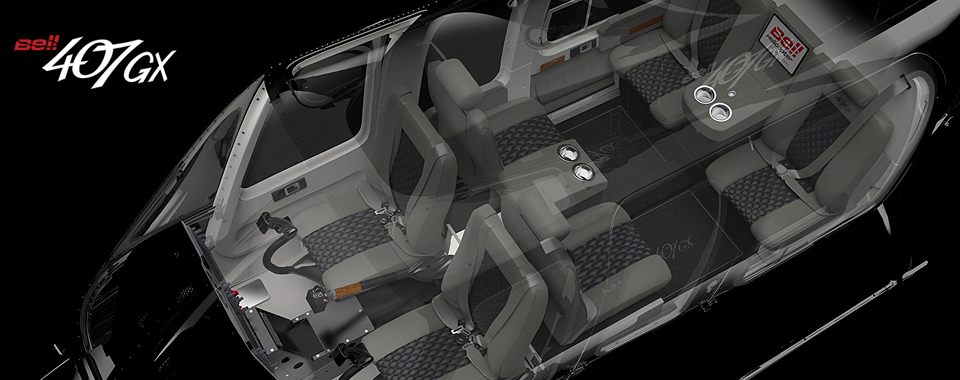

    Cabin Floor Space

    Cabin Volume²

    Aft (Baggage) Compartment Volume

    WEIGHTS

    Empty Weight (Base Aircraft)

    Max Gross Weight (Internal)

    Optional internal gross wt

    External gross wt

    Useful load, standard

    Useful load, optional

    Max ext load (cargo hook limit)

    POWERPLANT Rolls-Royce 250 C47B

    Engine Rating, Take-off



    ¹ Max GW, ISA, Std fuel – no reserves at sea leve

    ²  Does not include copilot volume of 20ft³ / 0.6m³







    259 km/h 140 nœuds

    246 km/h 133 nœuds

    611 km 330 milles marins

    3,8 h



    5 611 m 18 410 pieds

    3 725 m 12 220 pieds

    3 182 m 10 440 pieds



    1 + 6

    1 + 6

    483,8 litres 127,8 gallons US

    71,9 litres 19 gallons US

    1,8 m² 19,5 pieds²

    2,4 m³ 85 pieds³

    0,5 m³ 16 pieds³



    1 244 kg 2 742 livres

    2 268 kg 5 000 livres

    2 381 kg 5 250 livres

    2 722 kg 6 000 livres

    1 024 kg 2 258 livres

    1 137 kg 2 508 livres

    1 200 kg 2 646 livres



    606 kW 813 shp
