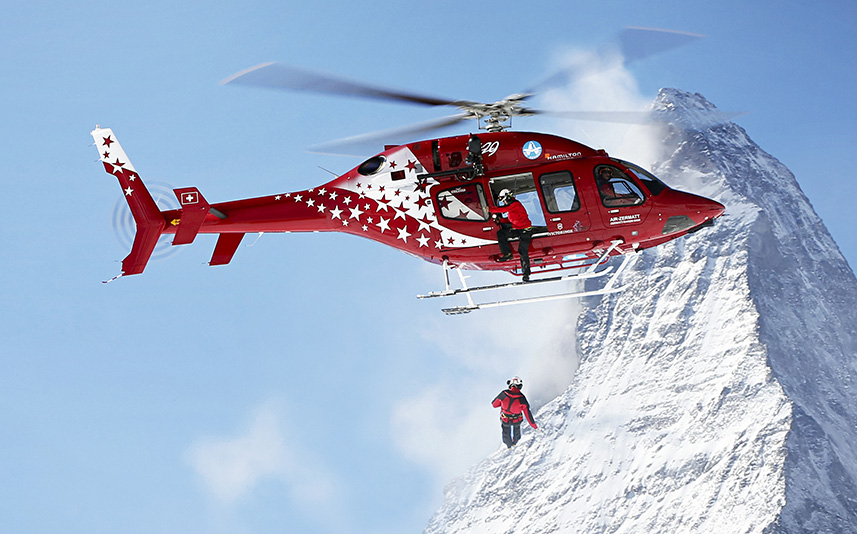

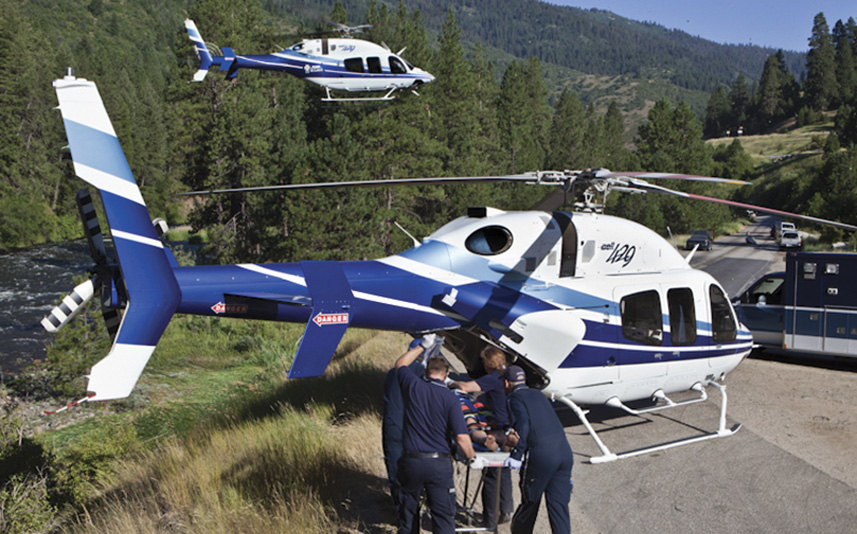

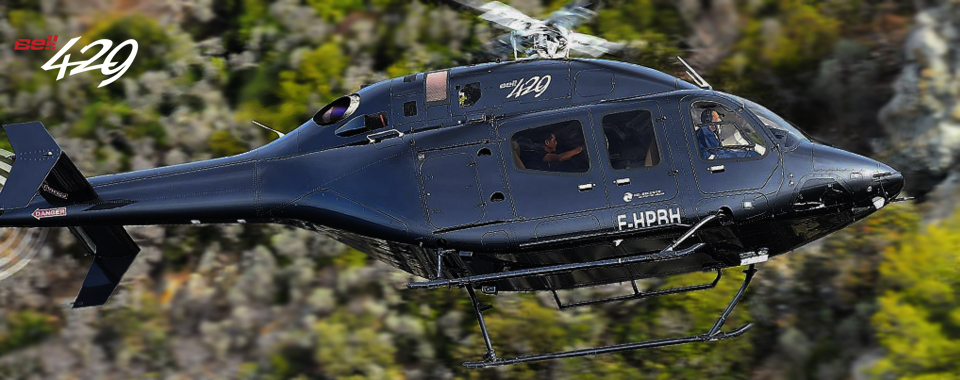

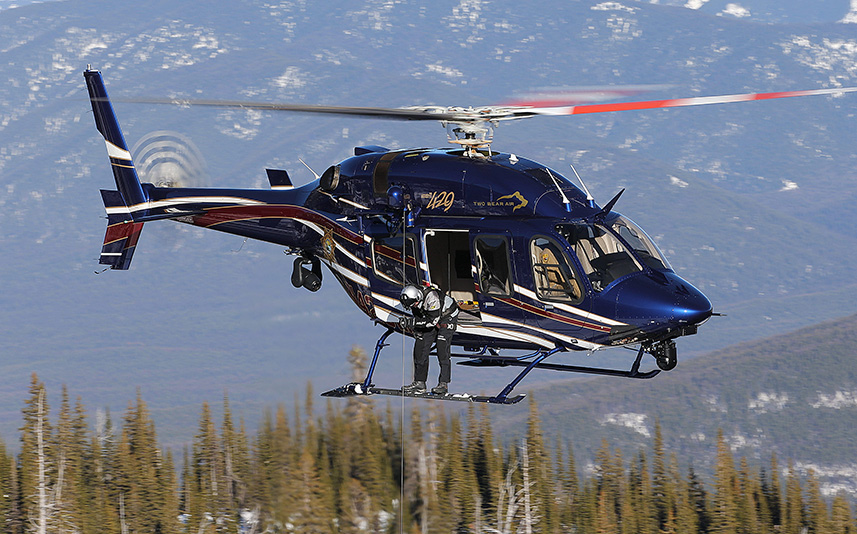

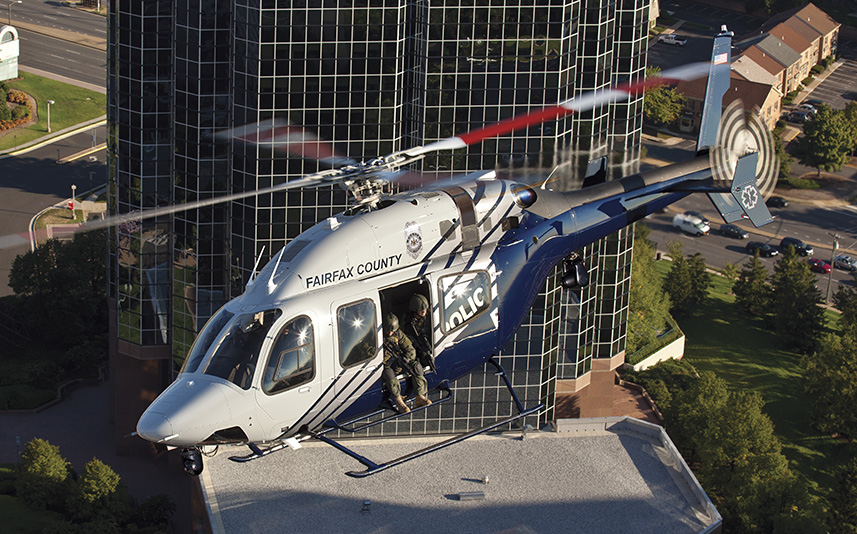

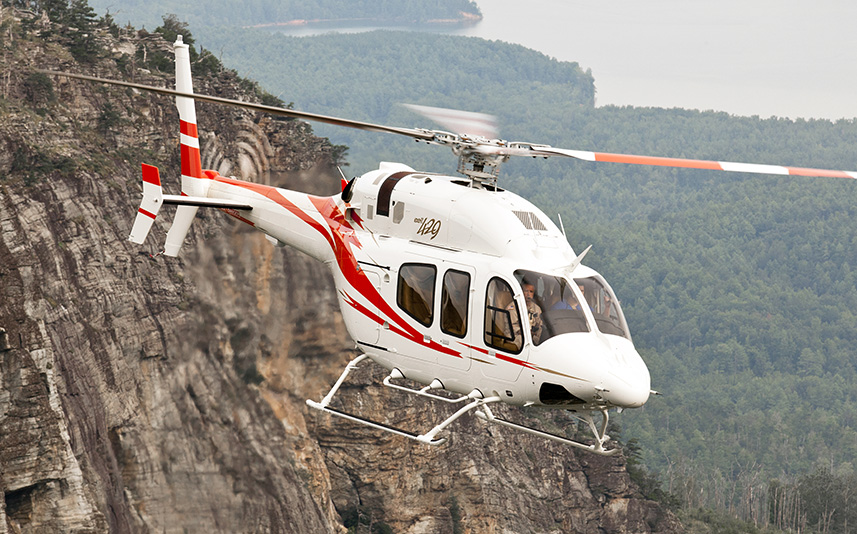

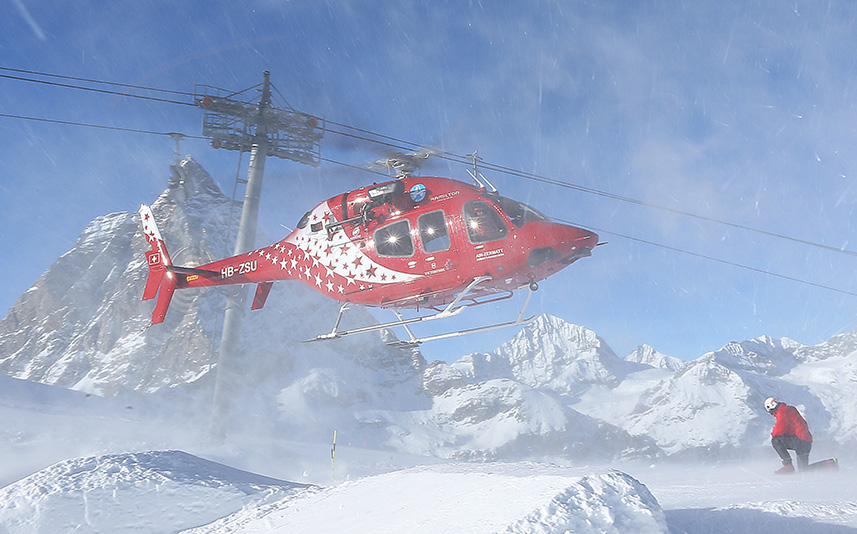

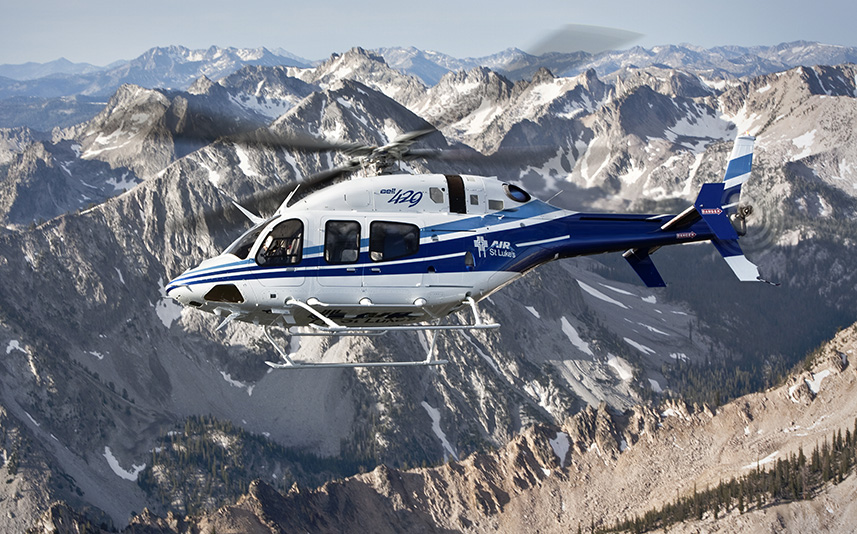

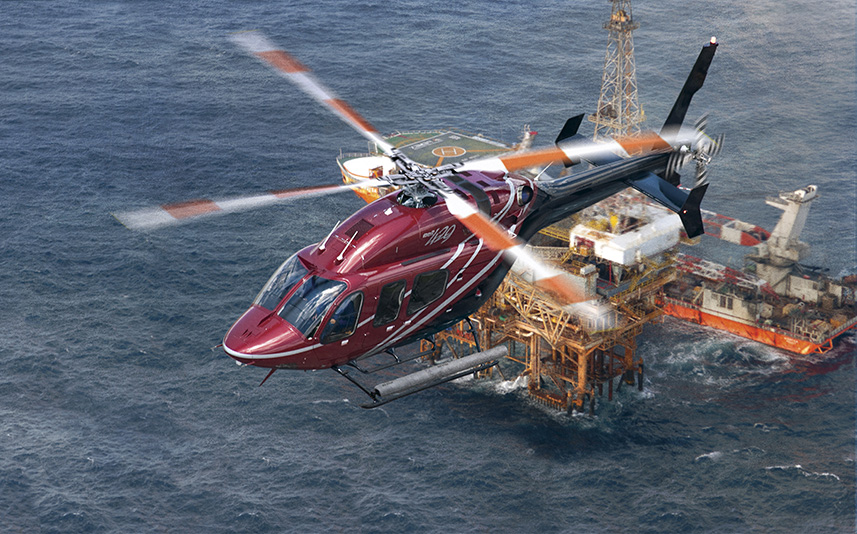

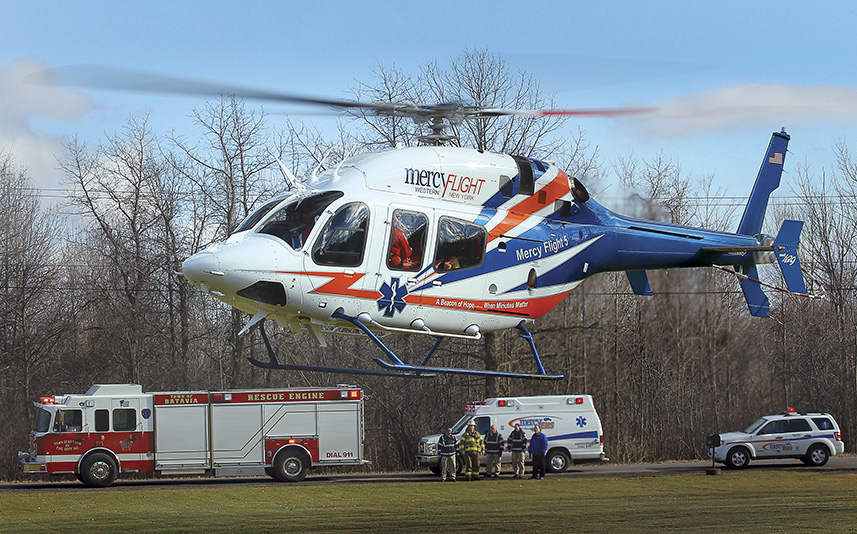

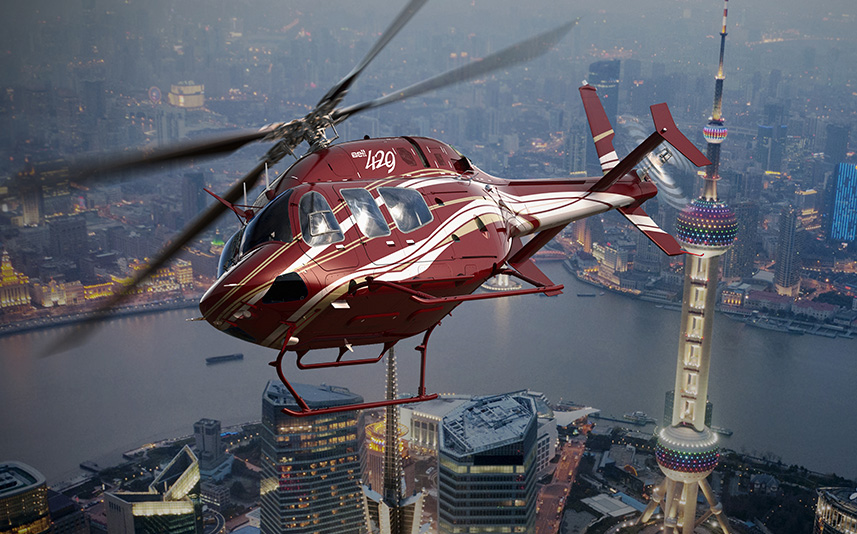

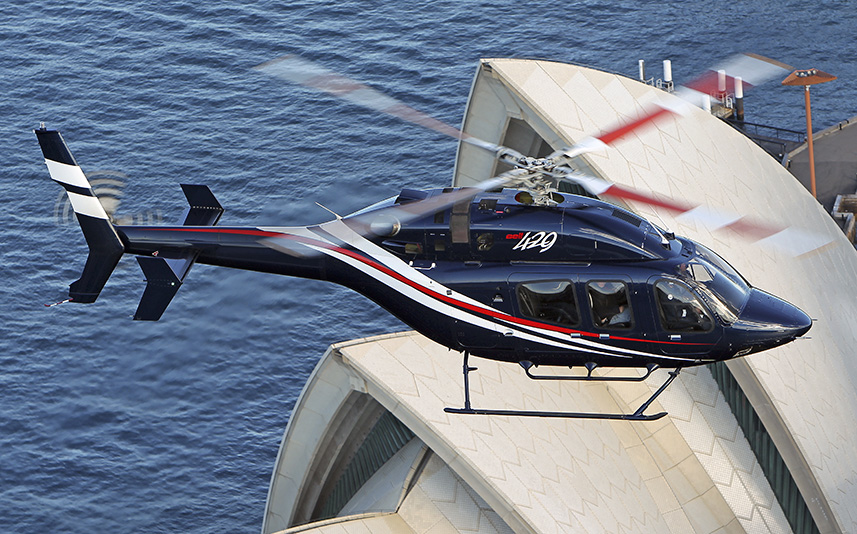

THE BELL 429

The Bell 429 delivers 150 knot (278 km/h) speed with a state-of-the-art cockpit featuring single pilot IFR and WAAS precision approach capabilities.  Its interior is exceptionally spacious with seating for up to seven passengers plus a pilot and can be reconfigured for any number of different missions.



The Bell 429 also features extra-large 60 inch (152 cm) side doors opening to a 130 cubic foot (3.7 cubic meter) cabin compartment, or 204 cubic foot (5.8 cubic meter) when including the aft cabin area. In addition to offering outstanding product features, the Bell 429 is backed by Bell Helicopter's renowned in-service support, voted #1 by our customers for twenty years running.  If your mission requires a helicopter with exceptional speed, capacity and flexibility, the Bell 429 is the helicopter you can count on to get the job done.

  • SPECIFICATIONS

    SPEEDS at max gross wt

    Vne

    Max cruise

    Range at VLRC¹

    Max Endurance¹

    CEILING ALTITUDES

    Service Ceiling (Pressure Altitude)

    Hover Ceiling IGE (Optional Max GW, ISA)

    Hover Ceiling OGE (Optional Max GW, ISA)

    CAPACITIES

    Standard Seating

    Maximum Seating

    Standard Fuel

    Auxilary Fuel (Optional)

    Cabin Floor Space

    Cabin Volume²

    Aft (Baggage) Compartment Volume

    WEIGHTS

    Empty Weight (Base Aircraft)²

    Useful Load (Internal, Standard Configuration)

    Minimum Empty Weight (SPIFR)³

    Max Useful Load (Internal, SPIFR)

    Max Gross Weight (Internal)

    Max Gross Weight (External Load)

    Cargo Hook Capacity

    POWERPLANT (2) Pratt & Whitney Canada PW207D1

    Engine Rating, Take-off



    1/ Max GW, ISA, Std. fuel – no reserve, at 4,000 ft/1,219 m



    2/ Total contiguous area, including baggage compartment. Does not include copilot volume of 28 ft³ /0.8 m³



    3/ Standard configuration includes:



    • Provisions for optional equipment including Cat. A operations, inlet barrier filter, air conditioning,

     rotor brake and wire strike protection system provisions

    • ELT

    • Pilot & co-pilot seats

    • 6-place passenger seating with 18.5 in wide seats

    • Standard interior, headliner panels and carpet

    • Increased Internal Gross Weight Kit (optional)



    4/ Minimum SPIFR configuration includes:



    • Provisions for optional equipment including Cat. A operations, inlet barrier filter, air conditioning,

      rotor brake and wire strike protection system provisions

    • ELT

    • Pilot seat



    287 km/h 155 nœuds

    278 km/h 150 nœuds

    761 km 411 milles marins

    4,5 h



    6 096 m 20 000 pieds

    4 307 m 14 130 pieds

    3 441 m 11 290 pieds



    1 + 7

    1 + 7

    821 litres 217 gallons US

    148 litres 39 gallons US

    3,04 m² 32,7 pieds²

    5,78 m³ 204 pieds³

    2,1 m³ 74 pieds³



    2 025 kg 4 465 livres

    1 150 kg 2 535 livres

    1 911 kg 4 212 livres

    1 265 kg 2 788 livres

    3 175 kg 7 000 livres

    3 402 kg 7 500 livres

    1 361 kg 3 000 livres



    820 kW 1 100 shp

  • IMAGE GALLERY

  • VIDEO

  • BROCHURE

    Bell 429 Data Brochure
